Nta
- Cov khoom yog tus qauv IO Link qhev ntaus ntawv uas txhawb nqa IO Link raws tu qauv
- Txog li 8 qhov chaw nres nkoj tuaj yeem txuas tau, thiab txhua qhov chaw nres nkoj txhawb nqa cov tswv yim / tawm ntawm 2 NPN lossis PNP digital I / O cov cim
- Txhua lub teeb liab digital input tuaj yeem kuaj pom tus kheej
- Qhov kev sib txuas lus siab tshaj plaws ntawm SG-IO-IOL-16DI Industrial IO-Link Hub Module yog 20 meters, uas tuaj yeem txhawb nqa tsis pub ntau tshaj 16 cov teeb liab digital inputs / outputs
- IO Link hub module 16DI txais kev tsim qauv tsim, nrog cov qauv compact uas pab txhawb kev faib khoom thiab xa tawm.
- IP67 tiv thaiv qib, tuaj yeem hloov mus rau qhov chaw hnyav xws li roj paug (txiav kua, thiab lwm yam), plua plav, noo noo, thiab lwm yam.
- 7 * 24 kev ua haujlwm tas mus li, ua kom muaj kev lag luam - qib kev ruaj ntseg thiab ua haujlwm rau qhov kub thiab txias thiab hnyav ib puag ncig rau kev ua haujlwm tsis tu ncua
- Nruab nrog kev tiv thaiv - tsim kev ua haujlwm tsis raug los xyuas kom muaj kev ntseeg siab ntawm kev teeb tsa thiab siv rau ntawm qhov chaw muaj kev lag luam
Technical nta
|
Qauv thiab Parameters |
SG-IO-IOL-16DI-PM8 |
SG-IO-IOL-16DI-NM8 |
|
|
Lub cev Parameters |

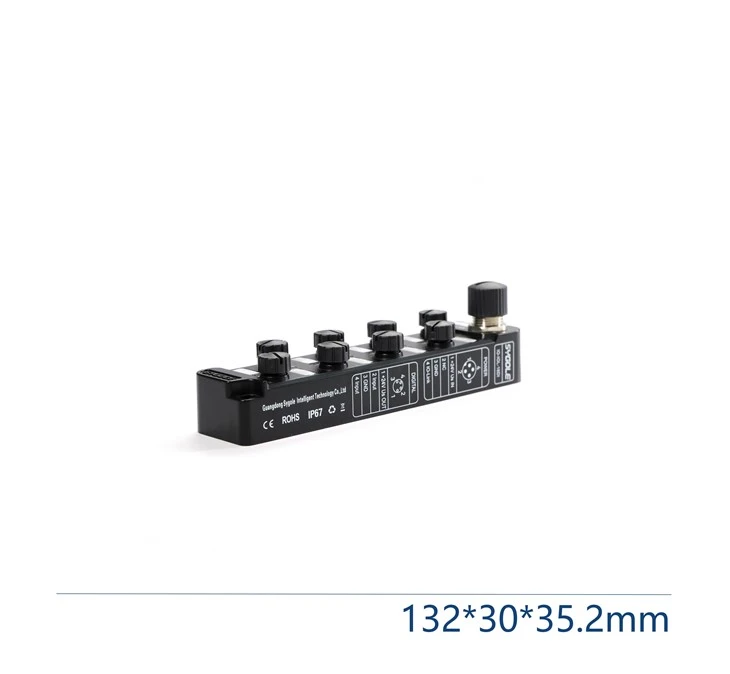

Loj |
132 * 30 * 35.2 hli |
|
|
Khoom siv tsev |
ABS + PC (plhaub) |
||
|
Txoj kev sib txuas hauv av |
Tsis muaj av |
||
|
Fastening |
Tsau nrog ob lub qhov khoob khoob |
||
|
Qhov hnyav |
95±5g |
105±5g |
|
|
Fais fab mov |
Rated Voltage |
24V DC ± 10% |
|
|
Qhov siab tshaj tam sim no |
17mA / 24V (Standby), 1.6A / 24V (tag nrho loaded) |
45mA / 24V (Standby), 1.6A / 24V (tag nrho loaded) |
|
|
Fais fab mov hom |
Sensor fais fab mov US |
||
|
Kev sib txuas lus |
Kev sib txuas lus raws tu qauv |
IO-Txuas V1.1 |
|
|
Kev sib txuas lus Interface |
A-CODE M12 txiv neej lub taub hau, 4-pin |
||
|
Kev sib txuas lus tus nqi |
COM2 (38.4 kbit / s) ceev |
||
|
Ntev ntawm kev sib txuas lus Cable |
Max =20m |
||
|
Yam tsawg kawg lub sij hawm voj voog |
3.0ms ib |
||
|
Txheej txheem cov ntaub ntawv Length |
2-byte input, 0-byte tso zis |
||
|
Digital Input / Output Chaw nres nkoj |
Tus naj npawb ntawm cov chaw nres nkoj |
8 txoj kev ywj pheej |
|
|
Kev sib txuas lus interface |
M8 txiv neej lub taub hau, 4-pin |
||
|
Input/output Quantity |
16-channel PNP teeb liab tawm tswv yim |
16-channel NPN teeb liab tawm tswv yim |
|
|
Ua hauj lwm zaus |
f Tsawg dua lossis sib npaug rau 250Hz |
||
|
Hloov Quantity |
VH=11-30V, VL=0~5V |
||
|
Environmental Adaptability |
Ua haujlwm kub |
-25℃~ +70 degree |
|
|
Cia Kub |
-40℃~ +85 degree |
||
|
Cov av noo |
5% ~ 95% RH (tsis muaj condensation) |
||
|
Qib tiv thaiv |
IP67 (bolts nruj) |
||
|
Anti vibration |
GB/T 2423.10-2019/IEC 60068 -2- -6: 2007 |
||
|
Surge cuam tshuam kev tiv thaiv |
GB/T 17626.5-2019, 2 KV |
||
|
ntawv pov thawj |
CE ROHS 2.0 |
||
